Detailed : Features ◆ A public broadcast controller that integrates playback, intelligent timing control, audio matrix, partition control, and other functions. ◆ There are 5 sets of timing schemes, each with 500 timing points, which are 7-day cycles. Each timing point can control the partition's sound source selection, chime, internal MP3, built-in AM/FM, 2-way power supply, and 4 external peripheral sound sources (CD, tuner, cassette, MP3 program player). The 5 sets of timing schemes can be easily switched. ◆ Eight-way ordinary sound source input, built-in MP3, AM/FM radio, one local aviation microphone input (with first priority function), one alarm signal input (with second priority function), one remote paging microphone signal input (with third-level priority function), one telephone paging signal input (with fourth-level priority function), and a large audio matrix with 40 outputs. ◆ 40-way fire emergency input (short-circuit signal), one fire linkage output (short-circuit signal, used for expansion, can be connected to MP99/8815E, MP99/8823S, etc.). (Each emergency input can trigger a programmable partition, and can trigger any partition) ◆ Through the LAN interface, an external computer can be connected to control the host through software. (Realize the computer to remotely set the timing, fixed point, and fixed program to automatically broadcast) (This function requires the purchase of remote control software to achieve). ◆ Can expand the remote paging microphone through the 9-pin port. ◆ All timing programs can be easily intervened manually at any time. ◆ Can monitor each partition in real time, with volume adjustment function. (Digital volume adjustment). ◆ Adopt high-performance DSP processor, digital matrix, digital volume control, digital equalizer, 7-inch color screen + touch panel. ◆ There is a USB interface, and the USB port can copy the songs in the U disk directly to the host for playback. ◆ 100-meter range wireless remote control, with 12 programmable buttons, can be customized to open/close the partition, select the sound source, select the song, etc. with one button. ◆ With 3 types of bell signal output function (digital volume adjustment). ◆ With alarm signal output function (digital volume adjustment). ◆ With telephone zone paging function (digital volume adjustment, password modification, full zone paging, self-selected paging, group paging, etc.). ◆ Can control the playback status of external sound source at a fixed time. ◆ With touch screen touch point calibration function. ◆ 40-way zone output digital volume adjustment function, can be remotely controlled. Detailed parameters

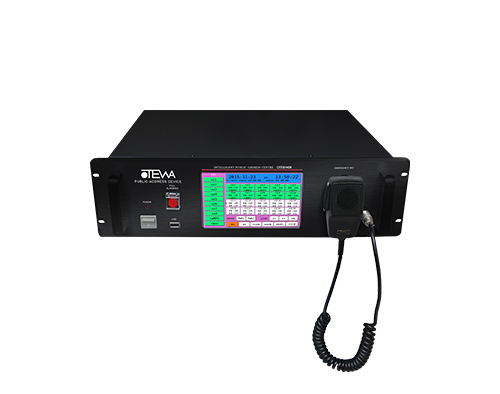

model	OTE9120II		OTE9140II
Control the number of partitions	20		40
show	7-inch color screen
Control operation mode	Touch screen/remote control/wireless remote control
Input sensitivity	250mV(±25mV)
Output	1V(0dBV)
Built-in audio source	Radio, MP3
MP3	Frequency Response	20Hz-20kHz
	Signal-to-Noise Ratio	85dB
	Dynamic Range	80dB
	Harmonic distortion	0.05%
Radio	AM	Sensitivity		52dBu
		Reception range		522kHz-1620kHz
		Passband		6kHz
		Signal-to-Noise Ratio		35dB
	FM	Sensitivity		26dBu
		Reception range		87.0MHz-108.0MHz
		Passband		15kHz
		Signal-to-Noise Ratio		75dB
Wireless Control	12 groups, control distance within 100-1000 meters
Frequency Response	20Hz-20kHz(±3dB) (single zone)
Signal-to-Noise Ratio	85dB
Crosstalk	70dB
Alarm trigger mode selection	The low level is 0V, and the high level is 5V~24V
Timing power output	PWR1		AC220V/50Hz/500W
	PWR2		AC220V/50Hz/500W
fuse	Local protection		F1AL
	Power protection		F10AL
power supply	AC220V (±10%)/50Hz
Power consumption	22W
Outer packaging size (mm)	(L×W×H)555×460×235
Machine size (mm)	(L×W×H)484×360×132
Gross Weight	11.8kg		12.3kg
net weight	9.2kg		9.6kg
